Racing

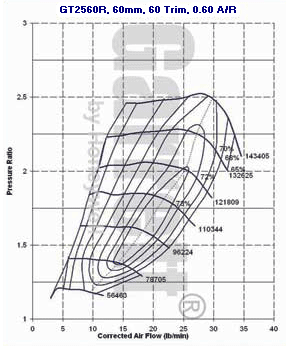

GT2560R - 466541-0001 Ball Bearing Turbos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
   Horsepower 200 HP - 330 HP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| GT2560R | COMPRESSOR | TURBINE | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Turbo | CHRA | Inducer | Exducer | Trim | A/R | Wh Dia | Trim | A/R | Type |
| 466541-0001 | 446179-0012 | 46.5 mm | 60.0 mm | 60 | 0.60 | 53.0 mm | 62 | 0.64 | Wastegated |
ACCESORIES
COMPRESSOR HOUSING
| Inlet | |
|---|---|
| Part Number | Description |
| 709375-0001 | Gasket |
| Outlet | |
|---|---|
| Part Number | Description |
| 210343 | Gasket |
TURBINE HOUSING
| Inlet | |
|---|---|
| Part Number | Description |
| 210218 | Gasket |
| 219007 | Flange |
| Outlet | |
|---|---|
| Part Number | Description |
| 210649 | Gasket |
| 219008 | Flange |
BEARING HOUSING
| Inlet | |
|---|---|
| Part Number | Description |
| Not used | Gasket |
| 431863-0006 | Oil fitting HiPer |
| 210750 | Water fittings kit |
| Outlet | |
|---|---|
| Part Number | Description |
| 210399 | Gasket |
| 766045-0003 | Oil drain HiPer |
| 210750 | Water fittings kit |
Updated on May 14, 2012
