GT4094VA - 773542-0001 Turbo Kits

GT40 773542-0001 turbine mapGT4094VA turbo

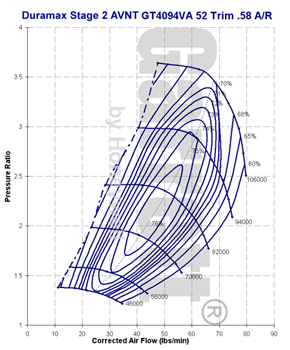

GT40 773542-0001 compressor map

Horsepower 575 HP

  • PowerMax Stage 2
  • Garrett® model GT4094VA turbocharger
  • Featuring the Garrett® patented Advanced Variable Nozzle Turbine (AVNTTM) design for increased compressor flow and turbine flow.
  • Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque.
  • Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control.
  • Provides up to an estimated 575 HP with no sacrifice to drivability.
  • Larger compressor trim (52), plus larger GT40 turbine wheel and vanes vs. Stage I.
  • Outline interchangeable for a perfect fit each and every time.

Note: Kit Contains: Garrett patented AVNTTMGT4094VA (Stage 2), adapter Cable, installation Instructions.

Installation Instructions (36 Kb)

GT4094VA COMPRESSOR TURBINE
Turbo CHRA Inducer Exducer Trim A/R Wh Dia Trim A/R Type
773542-0001 N/A - mm 94.0 mm 52 0.58 - mm - - AVNT

ACCESORIES

COMPRESSOR HOUSING

Inlet
Part Number Description
not available Hose
not available T-bolt band
Outlet
Part Number Description
not available Hose
not available T-bolt band

TURBINE HOUSING

Inlet
Part Number Description
not available Gasket
not available Flange
Outlet
Part Number Description
not available Gasket
not available Flange

BEARING HOUSING

Inlet
Part Number Description
not available Gasket
Outlet
Part Number Description
not available Gasket
